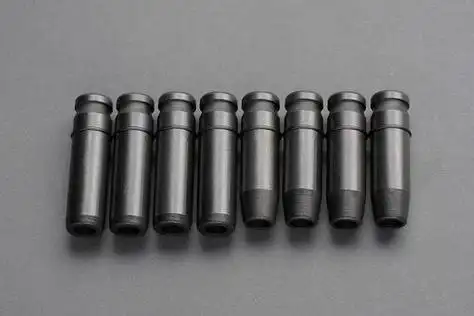

What is Valve Guide?

Understanding what is valve guide is essential to recognizing its importance in your engine’s valve system. This critical component ensures the smooth movement and proper alignment of the intake and exhaust valves. By maintaining this precision, the valve guide plays a key role in enhancing engine performance and durability.

Functions of a Valve Guide

Guiding Valve Movement

Valve guides play a crucial role in ensuring the smooth and precise movement of the engine’s intake and exhaust valves. These cylindrical components guide the vertical motion of the valve stems as they open and close during the combustion process. By maintaining this controlled movement, valve guides prevent misalignment, which could lead to inefficient engine performance.

1. They ensure the valve stems move smoothly within the cylinder head, reducing friction and wear.
2. They help retain oil for lubrication, further minimizing friction and extending the lifespan of the valve stems.
3. They contribute to the overall efficiency of the engine by enabling consistent valve operation.

This precise guidance ensures that your engine operates reliably and efficiently, even under demanding conditions.

Ensuring Proper Valve Alignment

Proper alignment of the valves is essential for maintaining a tight seal between the valve head and the valve seat. Valve guides ensure that the valves open and close perfectly, preventing leaks and optimizing engine performance. Misaligned valves can lead to combustion chamber leaks, reducing engine power and efficiency.

Valve guides also create a low-friction interface, which protects the valve stems from excessive wear. This durability ensures that the engine components remain in good condition over time, reducing the need for frequent repairs or replacements.

Supporting Heat Dissipation

During combustion, engine valves are exposed to extreme temperatures. Valve guides act as heat conduits, transferring heat from the valve stems to the cylinder head. This heat dissipation prevents the valves from overheating, which could cause deformation or failure.

Additionally, some valve guides are designed to retain oil, which not only lubricates the valve stems but also aids in cooling. By managing heat effectively, valve guides contribute to the overall durability and performance of your engine.

Tip: Regular maintenance of your engine’s valve guides can help prevent overheating and ensure optimal performance.

Materials Used in Valve Guides

Valve guides are crafted from materials that balance durability, heat resistance, and manufacturability. Each material offers unique properties suited to specific engine requirements. Below are the most commonly used materials:

Cast Iron

Cast iron is a popular choice for valve guides due to its cost-effectiveness and wear resistance. Its softer nature prevents galling and ensures compatibility with valve materials. This material performs well under thermal stress, making it suitable for general automotive applications.

• Advantages:
  • Low manufacturing cost.
  • Good wear resistance under extreme conditions.
  • Prevents galling due to its dissimilarity to valve metals.

However, cast iron has average strength and temperature resistance, which limits its use in high-performance engines.

Powder Metallurgy Materials

Powder metallurgy materials are engineered for high-performance applications. These materials offer customizable properties, allowing manufacturers to enhance thermal conductivity, wear resistance, and internal lubricity.

• Key Benefits:
  • Consistent quality with tight tolerances.
  • Improved thermal conductivity and wear resistance.
  • Cost-effective manufacturing with reduced material waste.

Powder metallurgy valve guides also contribute to environmental sustainability by improving gas flow efficiency and reducing CO2 emissions. Their high dimensional accuracy ensures reliable performance in demanding conditions.

Bronze

Bronze valve guides are widely used in high-performance vehicles due to their excellent heat dissipation and lubricity. Modern bronze alloys, such as those with high nickel or manganese content, enhance heat transfer and structural reliability.

• Why Choose Bronze?
  • Superior heat transfer compared to cast iron.
  • Deforms rather than splinters under impact, improving safety.
  • Ideal for turbocharged and high-stress applications.

Bronze guides require precise clearance to prevent seizing at operating temperatures. Despite this, their longevity and performance make them a preferred choice for performance engines.

Note: Selecting the right material for valve guides depends on your engine’s performance requirements and operating conditions.

Manufacturing Process of Valve Guides

Material Selection

The manufacturing process begins with selecting the right material for your valve guides. This step is crucial because the material directly impacts the guide’s performance and durability. You must consider the operating conditions, such as temperature, pressure, and environmental factors. For extreme conditions, stainless steel or high-grade alloys are ideal. In corrosive environments, bronze or specialized plastics perform better. Choosing the right material ensures your valve guides withstand the demands of the engine.

Compacting and Sintering

Once the material is selected, the metal powder is mixed with lubricants and binders. This mixture is compacted under high pressure to form a “green compact.” Compacting ensures the guide’s shape and density. The compact then undergoes sintering, where it is heated below the melting point. This process bonds the metal particles, reducing porosity and increasing density. As a result, the valve guide gains enhanced structural integrity and mechanical strength.

Machining and Finishing

After sintering, the valve guide undergoes machining to achieve precise dimensions and surface quality. Techniques like chamfering, precision turning, rough grinding, and fine grinding are used. These processes ensure the guide meets the required tolerances and performs reliably in the engine. Proper finishing minimizes friction and enhances the guide’s durability.

Quality Inspection and Oil Impregnation

Quality inspection ensures the valve guide meets industry standards. Techniques like ultrasonic testing, radiographic testing, and visual inspection detect defects and verify specifications. After inspection, the guide undergoes vacuum oil impregnation. This process fills the guide’s pores with oil, making it self-lubricating. Enhanced lubrication reduces wear and improves performance, especially in high-temperature environments.

Tip: Regular inspection and maintenance of valve guides can extend their lifespan and improve engine efficiency.

Common Issues with Valve Guides

Causes of Valve Guide Wear

Valve guides endure extreme conditions, making them susceptible to wear over time. Several factors contribute to this issue:

• High temperatures reduce the hardness of valve guides, leading to deformation and surface corrosion.
• Reciprocating friction between the valve and guide increases clearance, causing accelerated wear and potential fractures.
• Horizontal forces from machining or assembly errors create stress, which can result in premature failure.

Environmental factors, such as prolonged exposure to heat and friction, exacerbate these problems. Regular maintenance can help mitigate these risks and extend the lifespan of your valve guides.

Note: Addressing machining errors during installation can prevent horizontal forces from damaging the guides.

Symptoms of Worn Valve Guides

Recognizing the symptoms of worn valve guides is crucial for maintaining engine performance. You may notice the following signs:

• Increased oil consumption.
• Blue smoke emitting from the exhaust.
• Engine noise, particularly at idle.
• A noticeable loss of power and performance.

These symptoms indicate that the valve guides are no longer functioning effectively. Prompt action can prevent further damage to your engine.

Consequences of Valve Guide Failure

Neglecting worn valve guides can lead to severe engine issues. The table below highlights some potential consequences:

Additionally, excessive valve stem movement can cause clattering noises, signaling potential damage. Inefficient combustion due to improper sealing results in reduced power and overall engine inefficiency.

Tip: Regular engine inspections and timely repairs can help you avoid costly consequences caused by valve guide failure.

Valve guides are vital for engine durability and performance. They ensure proper valve alignment, reduce friction, and transfer heat efficiently. To maintain them in optimal condition:

• Regularly inspect and clean valve guides.
• Use proper lubrication to minimize wear.
• Follow manufacturer guidelines for maintenance.

Tip: Proactive care prevents costly engine repairs and ensures long-term reliability.

FAQ

Why are valve guides important for engine performance?

Valve guides ensure proper valve alignment, reduce friction, and dissipate heat. These functions maintain engine efficiency, prevent wear, and enhance durability under demanding conditions.

How can you identify worn valve guides?

Look for increased oil consumption, blue exhaust smoke, and engine noise. These symptoms indicate excessive clearance or improper sealing caused by worn valve guides.

What materials work best for high-performance valve guides?

Bronze and powder metallurgy materials excel in high-performance engines. They offer superior heat dissipation, wear resistance, and self-lubricating properties, ensuring reliable operation under extreme conditions.

Tip: Regular maintenance and timely inspections can help you detect valve guide issues early and avoid costly repairs.
