Titanium MIM in Orthopedic and Dental Implant Solutions

Titanium MIM creates highly precise, biocompatible implants that meet strict medical standards. Surgeons and dentists rely on this technology to deliver complex, customized designs that support seamless integration with human tissue.

• Medical device manufacturers prefer Titanium MIM for small, intricate parts, especially when producing over 10,000 units per year.
• The process reduces material waste and shortens production timelines once established.
• Although initial tooling costs remain high, these expenses often balance out through long-term part price savings and scalability.

Key Takeaways

• Titanium MIM produces precise, strong, and biocompatible implants ideal for orthopedic and dental use.
• The process allows complex, small parts with tight tolerances and near-net-shape manufacturing, reducing waste and costs.
• Titanium alloys like Ti-6Al-4V offer excellent corrosion resistance, mechanical strength, and support long-term implant stability.
• Porous Titanium MIM implants promote bone growth and better integration, improving healing and implant fixation.
• Titanium MIM supports high-volume, cost-effective production while maintaining strict medical quality and regulatory standards.
• Advanced surface treatments enhance implant durability, reduce infection risk, and improve patient recovery times.
• Challenges include process complexity, powder quality control, and regulatory hurdles, but ongoing research drives innovation.
• Future trends focus on personalization, digital integration, and sustainable manufacturing to improve implant performance and reduce environmental impact.

Titanium MIM: Transforming Medical Implants

Defining Titanium MIM Technology

Metal Injection Molding Process

Metal Injection Molding (MIM) uses a blend of fine titanium powder and a binder to form a moldable paste. Manufacturers inject this paste into precision molds under high pressure, creating complex shapes with minimal post-processing. After molding, the binder is removed through a controlled heating process. The part then undergoes sintering at high temperatures, which densifies the titanium and gives the component its final strength and structure. Sometimes, hot isostatic pressing further increases density and mechanical performance. This process produces small, intricate, and dimensionally accurate parts, making it ideal for medical devices such as orthopedic implants, dental implants, and surgical instruments. Titanium alloys like Ti-6Al-4V are especially suitable due to their biocompatibility, corrosion resistance, and strength-to-weight ratio.

Distinctive Features of Titanium MIM

Titanium MIM stands out from other implant manufacturing techniques because it enables the production of pore-free, dense components with exceptional mechanical properties. The process supports high-volume manufacturing while maintaining tight tolerances and excellent surface finishes. The table below highlights key technological advancements that set Titanium MIM apart:

Technological Advancement	Explanation	Benefits Compared to Other Implant Manufacturing Techniques
Use of fine titanium powders with thermoplastic binders	Titanium powders are combined with binders to form a moldable compound suitable for injection molding	Enables high precision molding of complex shapes, similar to plastic injection molding
Binder removal and sintering	After molding, binders are removed by heating, and titanium particles are sintered to near full density	Produces pore-free, dense parts with excellent mechanical properties
Design flexibility	MIM allows complex, small, and dimensionally accurate titanium components to be produced	Greater design freedom than traditional wrought or cast methods, enabling complex geometries
Homogeneous microstructure and isotropic properties	Parts have a uniform microstructure without interconnected porosity	Critical for medical implants to ensure strength and biocompatibility
Compatibility with various titanium alloys	Supports alloys like Ti-6Al-4V (Grade 5) known for strength and corrosion resistance	Broadens application scope with high-performance materials
Cost-effectiveness and high-volume production	Once tooling is made, mass production is inexpensive	Reduces cost compared to conventional metal-forming techniques while maintaining quality

Relevance in Orthopedic and Dental Fields

Adoption in Medical Device Manufacturing

Medical device manufacturers have widely adopted Titanium MIM for orthopedic and dental applications. Titanium alloys, especially Ti-6Al-4V, offer excellent biocompatibility, high strength, and corrosion resistance. These properties make them ideal for implants that must last a lifetime. MIM technology allows the creation of intricate, patient-specific designs with high precision and fine-grained microstructure. This capability enhances implant durability and fit. The process also reduces material waste and post-processing costs, making it more cost-effective than traditional manufacturing methods. Manufacturers use Titanium MIM to produce hip and knee joint components, dental brackets, clasps, and other small, complex devices.

Regulatory and Quality Considerations

Regulatory agencies require strict quality control for medical implants. Titanium MIM meets these standards by producing parts with consistent density, mechanical strength, and surface finish. The process supports the creation of porous structures that encourage bone ingrowth and vascularization, improving osseointegration and long-term stability. Mechanical testing and biocompatibility assays confirm that MIM-processed titanium meets the demands of medical applications. Manufacturers must document every step, from powder selection to final inspection, to ensure compliance with international standards. This rigorous approach helps deliver safe, reliable implants that improve patient outcomes.

Properties of Titanium for Implant Applications

Biocompatibility and Safety

Tissue Integration and Healing

Titanium demonstrates exceptional compatibility with human tissue. Researchers have conducted in vivo studies by implanting titanium and its alloys into animal models. These studies show that titanium supports healthy tissue response and integration. Surgeons observe that titanium implants promote bone and soft tissue cell adhesion, which is essential for stable healing. The material’s biologically inert nature means it does not trigger significant immune reactions. This property reduces the risk of implant rejection and supports long-term success in both orthopedic and dental procedures. Clinical experience confirms that titanium’s surface encourages rapid tissue attachment, leading to faster recovery and improved patient outcomes.

Hypoallergenic and Corrosion Resistance

Titanium’s hypoallergenic qualities make it a preferred choice for patients with metal sensitivities. The natural oxide layer that forms on titanium surfaces acts as a barrier, preventing ion release and tissue irritation. This layer also provides outstanding resistance to corrosion, even in the challenging environment of the human body. Long-term clinical use in orthopedic, dental, and spinal implants confirms that titanium remains safe and effective for decades. The combination of hypoallergenic properties and corrosion resistance ensures that titanium implants maintain their integrity and function over time.

Mechanical Strength and Performance

Load-Bearing and Fatigue Resistance

Titanium’s mechanical properties enable it to withstand the demands of load-bearing applications.

• Elastic Modulus: Titanium’s elastic modulus closely matches that of bone, which helps transfer stress efficiently and reduces the risk of bone loss.
• Fatigue Strength: Implants endure repeated forces, such as chewing or walking, without failing. Larger diameter and longer implants generally provide better fatigue life.
• Tensile and Yield Strength: These strengths allow implants to resist deformation and fracture under both static and dynamic loads.
• Hardness: High hardness improves wear resistance, contributing to the durability of the implant.

Longevity in Clinical Use

Titanium’s resistance to degradation ensures long-term structural integrity. The combination of mechanical strength and corrosion resistance allows implants to function reliably for many years. Design factors, such as implant diameter and thread pitch, further enhance performance and longevity. Patients benefit from implants that maintain their stability and effectiveness throughout their lifespan.

Osseointegration Advantages

Bone Bonding Mechanisms

Titanium’s surface chemistry and structure support direct bonding with bone tissue. The thin TiO₂ oxide layer that forms naturally on titanium acts as a protective barrier and enhances implant longevity. Bioactive surfaces on certain titanium alloys promote protein adsorption and stimulate new bone formation. Historical studies have shown that titanium integrates with bone tissue, making it an ideal material for implants.

Enhanced Stability and Function

Surface modifications, such as laser or nano-structuring, improve cell adhesion and osteoconductivity. Porous titanium materials allow bone to grow into the implant, increasing biological fixation and reducing stress shielding. Advanced surface treatments, including hydroxyapatite coatings, further enhance biocompatibility and infection resistance. These features provide greater stability and function, supporting successful outcomes in orthopedic and dental implantology.

Titanium MIM Process and Its Advantages

Precision and Design Flexibility

Complex Geometries and Customization

Titanium MIM enables manufacturers to create intricate implant designs that traditional methods cannot achieve. The process supports net-shape manufacturing, which means parts come out of the mold close to their final form. This capability allows for the production of small, complex, and highly precise components.

• The technology produces parts with extremely tight tolerances, often within 0.1-0.3%.
• Manufacturers can achieve near full density and pore-free structures, which are essential for medical implants.
• The process allows for the consolidation of multiple parts into a single component, reducing assembly steps and potential failure points.

Titanium MIM combines the design flexibility of plastic injection molding with the mechanical and biocompatible properties of titanium alloys. This combination supports the creation of custom implants tailored to patient anatomy, improving fit and function.

Tight Tolerances and Consistency

Medical implants require consistent quality and precise dimensions. Titanium MIM achieves this through controlled molding and sintering processes.

• The smooth surface finish of MIM parts supports compatibility with glass-to-metal seals, reducing the need for additional finishing.
• Manufacturers can maintain uniformity across large production runs, ensuring each implant meets strict medical standards.
• The process supports the use of medical-grade titanium alloys, such as Ti-6Al-4V, which offer high strength and corrosion resistance.

Cost-Effectiveness and Scalability

Material Efficiency and Reduced Waste

Titanium MIM stands out for its efficient use of materials. The process minimizes waste by molding parts close to their final shape, reducing the need for machining and excess material removal.

• High automation levels lower labor costs and improve production speed.
• The consolidation of parts further reduces material usage and assembly time.

Mass Production Capabilities

Manufacturers can scale production efficiently with Titanium MIM. Tooling can be designed with multiple cavities, allowing for the simultaneous production of many parts.

• The process supports high-volume manufacturing, making it cost-effective for large-scale implant production.
• Although initial tooling costs can be high, these expenses are offset by savings in material, labor, and post-processing over time.

Note: The MIM market continues to grow due to these cost benefits, especially when compared to traditional machining or casting.

Surface Engineering and Functionalization

Advanced Surface Treatments

Surface engineering plays a vital role in the performance of Titanium MIM implants. Coatings such as BIOCOAT®, BIODIZE®, and BIOCER® improve cell adhesion, proliferation, and differentiation.

• Anodic oxidation treatments enhance osseointegration, helping bone tissue bond more effectively with the implant.
• In vitro and in vivo studies confirm that MIM Ti-64 implants are non-toxic and support healthy tissue integration.

Coating and Texturing Options

The inherent surface roughness of MIM parts positively influences biological response. Manufacturers can apply additional coatings or texturing to further enhance implant performance.

• These treatments improve the stability and longevity of implants by promoting better bone attachment.
• MIM Ti-64 implants meet ASTM standards and pass rigorous biocompatibility tests, confirming their safety and effectiveness for clinical use.

Titanium MIM in Orthopedic Implant Solutions

Joint Replacement Components

Hip and Knee Implants

Orthopedic surgeons rely on joint replacement components to restore mobility and relieve pain in patients with degenerative joint diseases. Titanium MIM enables the production of hip and knee implants with complex, patient-specific geometries. These implants require tight tolerances, often within ±0.02mm, to ensure optimal fit and function. Manufacturers select titanium alloys such as Ti-6Al-4V for their excellent biocompatibility, corrosion resistance, and high mechanical strength. The fine-grained microstructure achieved through MIM enhances the durability and longevity of these implants.

• Titanium alloys resist corrosion, maintaining implant stability in the body.
• MIM technology reduces material waste and post-processing time, making it a cost-effective solution for complex orthopedic components.
• The ability to create intricate designs supports better anatomical matching and improved patient outcomes.

The combination of advanced materials and precise manufacturing underpins the clinical performance of hip and knee replacements, offering patients improved mobility and quality of life.

Shoulder and Elbow Devices

Shoulder and elbow replacements demand components that can withstand repetitive motion and significant mechanical stress. Titanium MIM allows for the fabrication of small, intricate parts that fit the unique anatomy of each patient. The process supports the creation of smooth articulating surfaces and robust fixation features. Surgeons benefit from implants that offer both strength and flexibility, reducing the risk of implant loosening or failure over time. The corrosion resistance of titanium alloys ensures long-term stability, even in challenging physiological environments.

Spinal Implant Applications

Interbody Fusion Devices

Spinal surgeons use interbody fusion devices to stabilize and fuse vertebrae in patients with spinal disorders. Titanium MIM enhances the design and performance of these devices by enabling the economical production of high volumes of precision net-shaped parts. The technology supports the fabrication of porous titanium structures, which promote osteointegration by allowing bone tissue to grow into the implant. This feature improves implant fixation and accelerates patient recovery.

The porous design also helps reduce stress shielding by adjusting the implant’s stiffness to better match that of natural bone. This adaptation minimizes bone resorption and supports long-term prosthesis fixation. Titanium MIM feedstocks exhibit good rheological properties, resulting in void-free molded parts with reliable mechanical strength and elongation. These factors contribute to the overall success of spinal fusion procedures.

Vertebral Fixation Systems

Vertebral fixation systems stabilize the spine following trauma, deformity correction, or degenerative changes. Titanium MIM enables the production of small, complex components such as screws, rods, and connectors with high precision. The process supports the integration of controlled porosity, which enhances osteointegration and mechanical compatibility with bone. Advances in powder supply and tooling have made Titanium MIM a preferred method for manufacturing these critical devices. The resulting implants offer improved design flexibility, manufacturing efficiency, and clinical performance.

Note: The ability to optimize porosity and mechanical properties through careful control of particle size, binder type, and sintering conditions allows for better biological and mechanical outcomes in spinal applications.

Trauma and Fracture Fixation Devices

Plates, Screws, and Nails

Trauma and fracture fixation devices play a vital role in stabilizing broken bones and supporting the healing process. Titanium MIM allows manufacturers to produce plates, screws, and nails with intricate geometries and consistent quality. The process supports the creation of both solid and porous structures, enabling implants that match the mechanical demands of different anatomical sites. Surgeons benefit from devices that offer high strength, corrosion resistance, and reliable fixation.

A table below summarizes the key advantages of Titanium MIM in trauma and fracture fixation devices:

Feature	Benefit for Trauma Devices
Precision Net-Shaping	Custom-fit plates and screws
Controlled Porosity	Enhanced bone ingrowth and fixation
High Mechanical Strength	Reliable stabilization of fractures
Corrosion Resistance	Long-term implant integrity
Cost-Effective Production	Affordable solutions for large volumes

Biological Response and Healing

The biological response to trauma implants depends on both material properties and surface characteristics. Titanium MIM enables the production of implants with surfaces that promote cell adhesion and bone growth. Porous titanium structures facilitate vascularization and tissue integration, supporting faster and more robust healing. The combination of biocompatibility, mechanical strength, and tailored porosity ensures that trauma and fracture fixation devices deliver excellent clinical outcomes.

Surgeons and patients benefit from implants that not only stabilize fractures but also actively support the body’s natural healing processes.

Clinical Outcomes and Patient Benefits

Case Studies and Success Rates

Orthopedic implants produced with Titanium MIM have demonstrated impressive clinical outcomes in real-world settings. Surgeons and patients report high satisfaction rates due to the technology’s ability to deliver custom-fit, durable implants. Several factors contribute to these positive results:

• Anodized surfaces on implants increase surface hardness and corrosion resistance. This improvement supports bone integration and extends implant durability.
• Hydroxyapatite coatings on Titanium MIM implants foster bone growth, which significantly enhances implant stability and long-term effectiveness.
• Rigorous quality assurance and regulatory compliance ensure that each device meets strict safety and efficacy standards.
• Titanium alloys used in MIM provide superior mechanical strength and fatigue resistance, which are critical for orthopedic applications.

The following table summarizes the main benefits and outcomes observed in clinical practice:

Benefit/Outcome	Description
Design Flexibility	Enables production of complex, patient-specific implant geometries previously unachievable.
High Precision and Accuracy	Tight tolerances ensure perfect implant fit, reducing surgical complications.
Enhanced Mechanical Properties	High strength and durability comparable to traditional implants, ensuring implant longevity.
Improved Surface Finish	Smooth surfaces reduce bacterial adhesion, lowering infection risk post-surgery.
Cost-Effectiveness	Efficient production with minimal waste reduces costs, increasing implant accessibility.
Clinical Outcomes	Improved implant longevity, reduced infection risk, faster recovery, and better patient quality of life.

Surgeons have observed that patients with Titanium MIM implants experience fewer complications and faster healing compared to those with traditional implants.

Recovery and Longevity

Patients who receive orthopedic implants manufactured through Titanium MIM often benefit from shorter recovery times and longer-lasting results. The advanced surface treatments, such as anodizing and hydroxyapatite coating, promote rapid bone integration. This biological response leads to stable fixation and reduces the risk of implant loosening.

• Patients typically return to daily activities sooner due to the precise fit and enhanced stability of these implants.
• The superior fatigue resistance of Titanium MIM components ensures that implants withstand repeated stress over many years.
• Smooth implant surfaces lower the risk of infection, which supports better long-term health outcomes.

Clinical follow-ups show that these implants maintain their structural integrity and function for extended periods. Many patients report improved mobility, reduced pain, and a higher quality of life after surgery. The combination of mechanical strength, biocompatibility, and advanced surface engineering makes Titanium MIM a reliable choice for orthopedic solutions.

Titanium MIM in Dental Implant Solutions

Endosteal and Root-Form Implants

Standard and Mini Implants

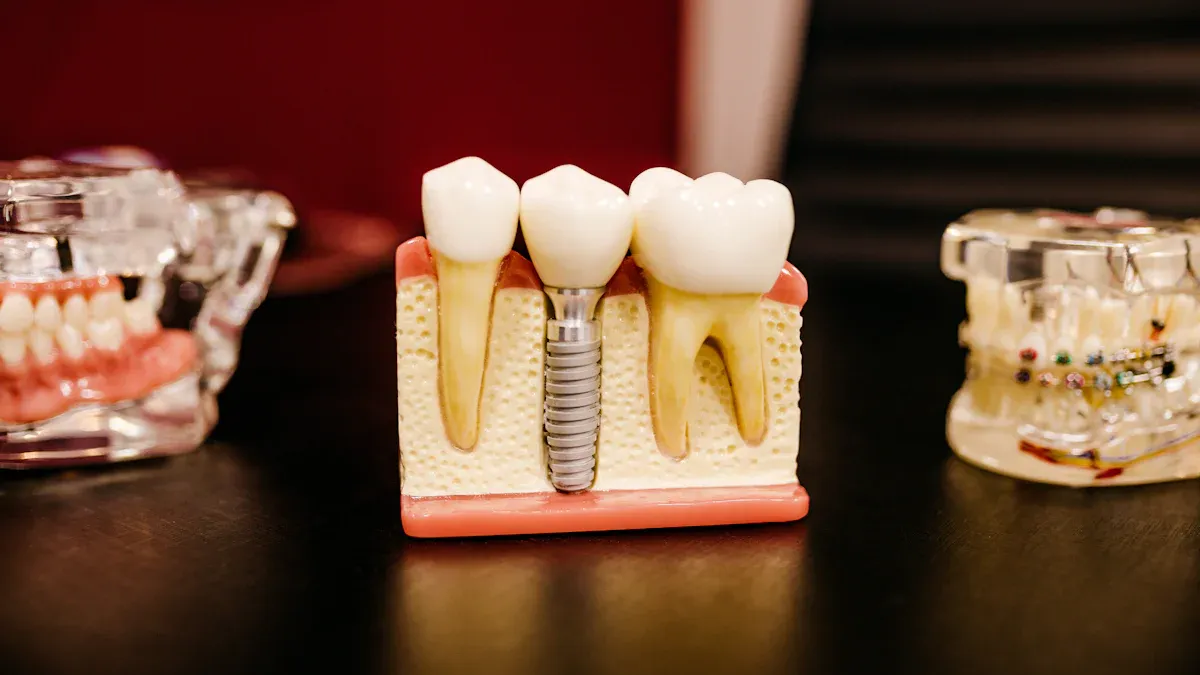

Dental professionals rely on endosteal and root-form implants to replace missing teeth and restore oral function. These implants anchor directly into the jawbone, providing a stable foundation for crowns, bridges, or dentures. Titanium MIM enables the production of both standard and mini implants with precise geometries and consistent quality. Standard implants typically serve as the foundation for single-tooth replacements or larger prosthetic restorations. Mini implants, with their reduced diameter, offer solutions for patients with limited bone volume or narrow spaces.

Historical and clinical research highlights the long-term success of commercially pure titanium and titanium alloys in dental implantology. The pioneering work of Branemark, who used CP Grade 1 Titanium, established the foundation for modern endosteal and root-form implants. Dental practitioners favor titanium materials for their proven biocompatibility, high strength, and ability to withstand the forces of chewing. Modern alloys such as Ti-6Al-4V ELI, often enhanced with low friction coatings, further improve the mechanical reliability of abutment screws and implant assemblies. These advancements confirm the suitability of titanium alloys, including those produced by advanced manufacturing methods, for dental implant applications.

Porous and Dense Structures

The structure of a dental implant plays a crucial role in its integration with bone and long-term stability. Titanium MIM allows manufacturers to create both dense and porous implant structures. Dense implants provide high mechanical strength and resist deformation under functional loads. Porous implants, on the other hand, encourage bone ingrowth and vascularization, which enhances osseointegration and biological fixation.

Researchers have developed rapid prototyping methods using advanced techniques to produce one-component biomimetic dental implants that fit precisely within existing root sockets. Studies evaluating Ti-6Al-4V ELI specimens demonstrate excellent tensile strength, hardness, and corrosion resistance. In vivo tests in animal models confirm the biocompatibility and suitability of these titanium alloys for dental applications. The ability to tailor implant porosity and density supports a wide range of clinical scenarios, from immediate loading to challenging bone conditions.

Abutments and Prosthetic Components

Custom Abutments

Abutments connect the dental implant to the visible prosthetic restoration, such as a crown or bridge. Custom abutments, designed to match the patient’s unique anatomy, optimize the fit and function of the final restoration. Titanium MIM enables the production of abutments with high precision and mechanical reliability. Digital design tools allow dental technicians to adjust parameters such as abutment width and height, improving load distribution and fatigue resistance.

Finite element analysis studies show that customized titanium abutments can outperform prefabricated alternatives by optimizing stress distribution and mechanical behavior. This customization enhances the longevity of the restoration and reduces the risk of mechanical complications. The use of Ti-6Al-4V ELI alloy, known for its superior mechanical properties, further supports the clinical performance of custom abutments.

Multi-Unit Systems

Multi-unit systems play a vital role in supporting full-arch restorations and complex prosthetic cases. These systems require components that can withstand significant functional loads while maintaining precise alignment. Titanium MIM provides the mechanical strength and dimensional accuracy needed for reliable multi-unit connections. Research comparing titanium and titanium-zirconium implant components demonstrates that titanium abutments deliver more uniform stress distribution and greater mechanical reliability than zirconia alternatives.

The table below compares titanium MIM components with other manufacturing methods for abutments and prosthetic parts:

Aspect	Titanium MIM Components	Other Methods (e.g., 3D Printing)
Mechanical Properties	High tensile strength, fatigue resistance, corrosion resistance, suitable for load-bearing applications	Often, lower mechanical properties and surface finish compared to MIM
Precision & Complexity	High precision with the ability to produce complex geometries and tight tolerances	Good for complex shapes, but may have limitations in precision and surface finish
Customization	Limited customization due to costly and time-consuming mold changes	Excellent customization and rapid prototyping without tooling costs
Production Volume	Cost-effective and efficient for high-volume production with low per-unit cost	More suited for low-volume, prototypes, and custom parts; higher per-unit cost at scale
Lead Time	Longer lead time initially due to mold design and sintering, but faster for mass production	Faster for prototypes and custom parts; slower for large-scale production due to build and post-processing times
Regulatory Compliance	Established standards and robust documentation for medical devices	Evolving standards require thorough validation and testing

Titanium MIM abutments and prosthetic components excel in mechanical performance and are ideal for consistent, high-volume production. Other methods, such as 3D printing, provide superior customization but may compromise on mechanical properties and cost efficiency at scale.

Maxillofacial and Jawbone Reconstruction

Restoration of Jaw and Facial Bones

Maxillofacial reconstruction addresses defects or injuries affecting the jaw and facial bones. Surgeons use custom titanium implants to restore both function and appearance after trauma, tumor resection, or congenital deformities. Titanium MIM supports the fabrication of patient-specific implants with complex geometries, ensuring a precise fit and optimal biomechanical performance.

Clinical cases demonstrate the effectiveness of customized subperiosteal titanium maxillary implants in reconstructing segmental maxillary defects. Surgeons have restored vertical maxillary dimensions and achieved esthetic and functional outcomes using virtual surgical planning, STL models, and CAD/CAM titanium mesh. In vitro studies confirm that titanium matrices do not exhibit cytotoxic effects. Oral mesenchymal stem cells seeded on these scaffolds proliferate and differentiate into bone-forming cells, especially when conditioned with nanohydroxyapatite. These findings highlight the biocompatibility and regenerative potential of titanium implants in maxillofacial applications.

Craniofacial Plates and Fixation

Craniofacial plates and fixation devices stabilize bone segments during healing after reconstructive surgery. Titanium MIM enables the production of plates and screws with intricate designs and consistent mechanical properties. Surgeons benefit from implants that combine high strength, corrosion resistance, and compatibility with advanced imaging techniques.

A notable clinical case involved a 67-year-old woman who underwent subtotal mandibular resection for squamous cell carcinoma. Surgeons reconstructed her mandible with a custom-made titanium implant, restoring mandibular continuity and supporting a dental prosthesis. This approach reestablished masticatory function after conventional methods failed.

The table below summarizes clinical outcomes from a prospective multicenter study on titanium dental implants used in maxillofacial reconstruction:

Parameter	Details
Study Type	Prospective multicenter study
Number of Patients	82 (44 males, 38 females)
Age Range	26–67 years
Number of Implants	110 titanium dental implants
Implant Locations	65 maxilla, 45 mandible
Implant Survival Rate (3 yrs)	94.5%
Implant-Crown Success Rate	94.3%
Follow-up Duration	3 years
Clinical Assessments	Clinical, radiographic, prosthetic

High survival and success rates support the effectiveness of titanium implants manufactured by advanced methods in maxillofacial and jawbone reconstruction.

Clinical Benefits in Dentistry

Osseointegration and Stability

Dental implants must achieve strong and lasting integration with the jawbone to ensure long-term success. Titanium MIM technology supports this goal by producing implants with optimized surface characteristics and precise geometries. Dentists observe that titanium implants with advanced surface treatments, such as TiUnite, deliver superior osseointegration compared to other surfaces like SLA, SLActive, and Osseotite. TiUnite surfaces maintain the highest stability throughout the healing period, while SLActive surfaces promote early bone formation but do not match TiUnite’s long-term performance.

Osseointegration refers to the direct fusion of the implant with surrounding bone. This process is critical for implant stability and function. Titanium’s biocompatibility allows it to bond closely with bone tissue, forming a strong and durable connection. The surface roughness and hydrophilicity of titanium implants further enhance bone deposition and integration. Clinical trials confirm that these features reduce healing time and increase implant success rates.

Dentists measure osseointegration by bone-to-implant contact (BIC). High BIC values indicate a solid foundation for the implant, supporting its ability to withstand biting and chewing forces. Titanium’s strength and corrosion resistance ensure that implants remain stable and durable in the challenging oral environment. Patients benefit from reduced risk of implant failure and improved long-term outcomes.

Note: Titanium MIM implants promote new bone growth around the implant, addressing bone loss and providing a reliable base for dental restorations.

Aesthetic and Functional Outcomes

Patients expect dental implants to restore both appearance and function. Titanium MIM enables the production of implants and abutments with precise shapes and smooth surfaces, which support natural-looking restorations. Dentists can select or customize components that match the patient’s gum line and tooth color, resulting in seamless integration with the surrounding teeth.

Functional outcomes depend on the stability and strength of the implant. Titanium’s mechanical properties allow implants to handle the forces of chewing and speaking without deformation or fracture. Patients experience restored biting efficiency and improved speech clarity. The corrosion resistance of titanium ensures that implants retain their appearance and function over many years.

Aesthetic results also rely on the tissue response around the implant. Titanium’s biocompatibility minimizes inflammation and supports healthy gum tissue, reducing the risk of recession or discoloration. Patients report high satisfaction with the natural look and feel of their dental restorations.

• Key benefits of Titanium MIM dental implants in clinical practice:
  • Strong and stable bone integration
  • Reduced healing time and higher success rates
  • Natural appearance and comfortable function
  • Long-term durability and resistance to oral conditions

Dentists and patients recognize Titanium MIM as a reliable solution for achieving both functional and aesthetic goals in dental implantology.

Challenges and Future Directions for Titanium MIM

Current Limitations and Barriers

Process Complexity and Quality Control

Titanium MIM technology faces several hurdles before it can achieve widespread adoption in medical implant manufacturing.

• Manufacturers must manage complex processes that require dedicated production lines and strict quality systems.
• The high reactivity of low oxygen titanium powder with elements like oxygen, hydrogen, and carbon complicates processing.
• Strict control during binder mixing, debinding, and sintering is essential to avoid contamination and maintain mechanical properties.
• Cheaper hydride-dehydride titanium powders often have irregular shapes, leading to poor moldability and higher oxygen content, which can affect final product quality.
• Improving powder morphology and binder systems remains a focus to enhance feedstock flow and ensure consistent results.

Quality control presents another challenge. Each step, from powder selection to final inspection, demands rigorous validation. Manufacturers must ensure that every implant meets tight tolerances and maintains the required mechanical strength. These requirements increase production complexity and cost.

Regulatory and Certification Challenges

Regulatory agencies set high standards for medical implants.

• Companies must provide extensive clinical data, including Level 1 evidence, to validate patient-specific applications.
• The time to market often extends due to lengthy regulatory reviews and documentation requirements.
• Cost competitiveness becomes difficult as manufacturers balance the need for fatigue-resistant metals with efficient quality control.
• Industry momentum continues to grow, but adoption in regulated medical fields progresses slowly.

Note: Design expertise in MIM and additive manufacturing remains limited, which can slow innovation and confidence in new implant solutions.

Innovations and Research Trends

Advanced Surface Engineering

Researchers continue to develop titanium biocompatible structures for implants, surgical tools, and tissue affixation.

• Porous titanium MIM parts now enable bone ingrowth, especially when infused with hydroxyapatite.
• Microminiature MIM components support minimally invasive surgical tools, such as cutters and graspers.
• Medical-grade titanium MIM parts remain a focus, though only a few firms currently specialize in this area.

Technological advancements in feedstock formulations and automation have improved production efficiency and scalability. Collaboration between MIM manufacturers and medical device companies accelerates product customization and development. The demand for small, complex components continues to rise, driven by trends in minimally invasive surgery and micro-instrumentation.

Next-Generation Titanium Alloys

Next-generation titanium alloys, especially β-Titanium (β-Ti) alloys, show great promise for medical implants.

• These alloys offer a lower modulus of elasticity, reducing the risk of bone fracture compared to traditional alloys like Ti-6Al-4V.
• β phase stability at room temperature requires elements such as molybdenum and chromium, which avoid allergy risks linked to aluminum and vanadium.
• Manufacturing β-Ti alloys via MIM presents challenges, including controlling contamination during sintering and achieving rapid cooling for optimal properties.

Advances in sintering furnace technology and powder manufacturing are underway to enable stable mass production of β-Ti alloy MIM components. Companies like Taisei Kogyo Co., Ltd. lead efforts to improve β phase content and mechanical performance.

Future Trends in Implant Manufacturing

Personalization and Digital Integration

Digital technologies are transforming Titanium MIM implant manufacturing.

• IoT integration with sensors in molding machines allows real-time process control, reducing defects and improving quality.
• Artificial intelligence assists in material research, defect detection, and automation, boosting precision and efficiency.
• Robotics and automation shorten cycle times and increase consistency.
• Combining additive manufacturing with injection molding accelerates prototyping and lowers costs.

Direct Metal Laser Sintering (DMLS) enables the production of custom implants tailored to individual anatomies. This technology supports complex geometries and porous structures, promoting bone ingrowth and faster healing. Integration with robotics and remote surgery expands surgical capabilities and aligns with the trend toward personalized medicine.

Sustainability and Green Manufacturing

Sustainability has become a priority in Titanium MIM production.

• MIM reduces material waste by producing near-net-shape parts, minimizing machining and scrap.
• The process delivers excellent surface finishes, reducing the need for additional finishing steps and saving energy.
• The medical industry increasingly adopts sustainable practices to lower energy consumption and waste.

Innovative systems like Continuum Powders’ Greyhound Melt-to-Powder (M2P) convert certified scrap titanium directly into high-quality powder, drastically reducing energy use and carbon emissions. This approach supports a circular manufacturing model, preserves alloy integrity, and aligns with strict ESG goals. As a result, Titanium MIM continues to evolve as a greener, more efficient solution for medical implant manufacturing.

---

Titanium MIM continues to transform orthopedic and dental implant solutions by delivering unmatched precision, strength, and biocompatibility. Recent advancements allow manufacturers to create complex, high-performance medical components that improve patient safety and support personalized care. The technology enables the rapid production of reliable, corrosion-resistant implants and surgical tools, meeting strict medical standards. As the demand for advanced healthcare grows, Titanium MIM stands out as a leading choice for next-generation implants, promising better outcomes for both patients and providers.

FAQ

What is Titanium MIM and how does it differ from traditional implant manufacturing?

Titanium MIM, or Metal Injection Molding, uses fine titanium powder and a binder to create complex implant shapes. Traditional methods, such as machining or casting, cannot match MIM’s precision, design flexibility, or efficiency for small, intricate medical components.

Are Titanium MIM implants safe for long-term use in the body?

Yes. Titanium MIM implants use medical-grade alloys with proven biocompatibility. Clinical studies confirm that these implants resist corrosion, do not trigger allergic reactions, and maintain structural integrity for many years.

How does Titanium MIM improve patient outcomes in orthopedic and dental procedures?

Titanium MIM enables custom-fit implants with precise geometries. Surgeons achieve better anatomical matching, which leads to faster healing, fewer complications, and improved long-term function for patients.

Can Titanium MIM produce porous implants for better bone integration?

Absolutely. Manufacturers use Titanium MIM to create implants with controlled porosity. These porous structures encourage bone ingrowth, which enhances stability and supports natural healing.

What are the main challenges in adopting Titanium MIM for medical implants?

Manufacturers face challenges with process complexity, powder quality, and strict regulatory requirements. They must maintain tight quality control at every stage to ensure consistent, safe, and effective implants.

How does Titanium MIM support sustainability in medical device manufacturing?

Titanium MIM reduces material waste by producing near-net-shape parts. The process uses less energy and raw material compared to traditional machining, supporting greener manufacturing practices.

Is Titanium MIM suitable for custom or patient-specific implants?

Titanium MIM excels in high-volume production. For fully custom, one-off implants, additive manufacturing may offer more flexibility. However, MIM can produce semi-customized parts efficiently when demand justifies tooling investment.

What types of implants benefit most from Titanium MIM technology?

Orthopedic screws, plates, dental abutments, joint components, and spinal devices all benefit from Titanium MIM. The technology delivers high precision, strength, and biocompatibility for these critical applications.
