Stainless steels play a pivotal role in the metal injection molding process. Their exceptional properties, including corrosion resistance, mechanical strength, and adaptability, make them indispensable. These materials enable manufacturers to create intricate, high-performance components efficiently. Industries such as medical, automotive, and electronics rely on stainless steels in metal injection molding process for superior results.
Key Takeaways
- Stainless steels make metal injection molding faster and better. This saves time and energy.
- They resist rust and are very strong, making them great for tough jobs in medical and aerospace fields.
- Stainless steels have fewer tiny holes, making parts last longer and need fewer replacements.
Role of Stainless Steels in the MIM Process
How Stainless Steels Enhance MIM
Stainless steels significantly improve the efficiency and quality of the metal injection molding process. Their unique properties allow for faster processing times and reduced energy consumption. For instance, stainless steels enhance densification kinetics during sintering, which accelerates the process and minimizes energy requirements. Additionally, microwave-assisted sintering of stainless steels produces finer microstructures and optimized densification, further boosting efficiency.
The ability of stainless steels to achieve high mechanical properties and dimensional tolerances comparable to wrought grades makes them ideal for MIM. The sintering temperature for stainless steels typically ranges between 1200℃ and 1350℃, with sintering times from 20 to 60 minutes. This precise control ensures strong bonding and structural integrity in the final components. Without sufficient sintering, products may suffer from poor bonding and structural issues, highlighting the importance of stainless steels in achieving reliable results.
Key Properties That Make Stainless Steels Ideal for MIM
Several key properties make stainless steels a preferred material in the metal injection molding process. High density is one of the most critical factors, as it directly enhances mechanical performance. MIM stainless steels can achieve mechanical properties close to those of wrought steels, especially when post-sintering treatments like hot isostatic pressing are applied. This makes them suitable for applications requiring strength and durability.
Control of porosity is another essential property. Stainless steels in MIM maintain low porosity levels, which is crucial for ensuring excellent fatigue and corrosion resistance. Porosity exceeding 8% can significantly degrade these properties, making stainless steels’ ability to maintain tight control over porosity a key advantage. Furthermore, their corrosion resistance and ability to withstand high temperatures make them versatile for various industries.
By combining these properties, stainless steels enable the production of complex, high-performance components with exceptional reliability and longevity. This versatility underscores their importance in the metal injection molding process.
Advantages of Stainless Steels in MIM
Corrosion Resistance and Longevity
Stainless steels offer exceptional corrosion resistance, making them ideal for the metal injection molding process. Their ability to withstand harsh environments ensures the longevity of components, even in challenging conditions. The mechanical properties of MIM stainless steels closely resemble those of wrought steels, particularly in elongation, which is a critical factor for assessing corrosion performance. The table below highlights these properties:
| Property | MIM Stainless Steels | Wrought Steels |
|---|---|---|
| Elongation (%) | 38 | 40 |
| Corrosion Resistance | High | High |
This durability allows stainless steel components to maintain their integrity over time, reducing the need for frequent replacements and ensuring cost-effectiveness.
Strength and Mechanical Performance

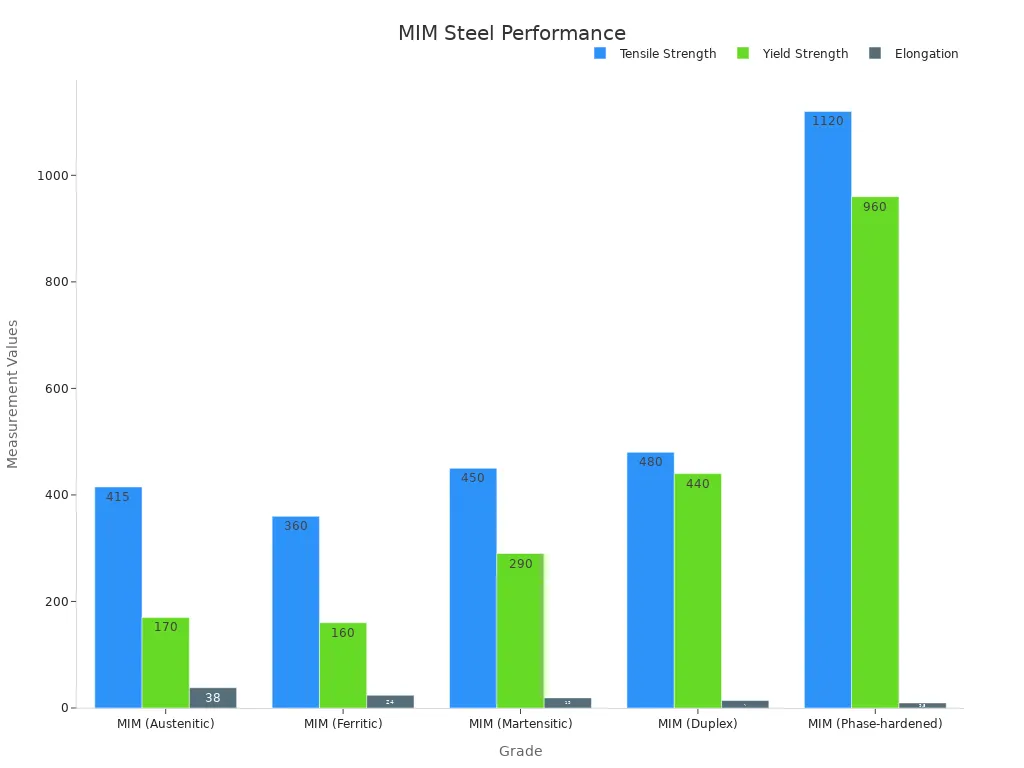

Stainless steels in MIM exhibit remarkable strength and mechanical performance, making them suitable for demanding applications. The tensile and yield strengths of various grades demonstrate their robustness. The table below provides a comparison of these properties:
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness |
|---|---|---|---|---|
| MIM (Austenitic) | 415 | 170 | 38 | 80 HRB |
| MIM (Ferritic) | 360 | 160 | 24 | 80 HRB |
| MIM (Martensitic) | 450 | 290 | 19 | 90 HRB |
| MIM (Duplex) | 480 | 440 | 14 | 27 HRB |
| MIM (Phase-hardened) | 1120 | 960 | 9.5 | 40 HRB |
These properties ensure that stainless steel components can endure high stress and maintain their functionality under extreme conditions.
Suitability for Complex and Precise Designs
Stainless steels excel in producing complex and precise designs through the MIM process. They achieve higher mechanical properties than conventional powder metallurgy steels, making them ideal for intricate applications. Key performance metrics include:
- Densities reaching up to 95% of theoretical density, ensuring structural integrity.
- High dimensional tolerance, critical for precision designs.
- Superior fatigue resistance, enabling long-term reliability.
These attributes make stainless steels indispensable for industries requiring intricate and high-performance components, such as medical devices and aerospace parts.
Common Types of Stainless Steels in MIM
316L Stainless Steel
316L stainless steel is one of the most widely used materials in the metal injection molding process. Its low carbon content enhances corrosion resistance, making it suitable for harsh environments. This grade exhibits excellent mechanical properties, including high tensile strength and elongation, which ensure durability and reliability.
Applications of 316L stainless steel include medical implants, surgical instruments, and chemical processing components. Its biocompatibility makes it ideal for medical devices, while its resistance to pitting and crevice corrosion ensures longevity in chemical and marine environments.
17-4 PH Stainless Steel
17-4 PH stainless steel is a precipitation-hardening grade known for its exceptional strength and hardness. It offers superior mechanical performance compared to other stainless steels, making it ideal for high-stress applications. This grade also provides good corrosion resistance, particularly in environments exposed to moisture or chemicals.
Industries such as aerospace, automotive, and defense rely on 17-4 PH stainless steel for components like turbine blades, gears, and structural parts. Its ability to maintain dimensional stability during heat treatment enhances its suitability for precision applications.
Other Popular Grades
Other stainless steel grades, such as 304L and 440C, also play a significant role in the metal injection molding process. 304L offers excellent weldability and corrosion resistance, making it suitable for food processing and consumer goods. On the other hand, 440C provides high hardness and wear resistance, making it ideal for cutting tools and bearings.
These grades expand the versatility of stainless steels in metal injection molding, catering to diverse industry needs.
Applications of Stainless Steels in MIM
Medical and Dental Devices
Stainless steels play a critical role in manufacturing medical and dental devices through the metal injection molding process. Their biocompatibility and corrosion resistance make them ideal for implants, surgical instruments, and orthodontic components. For example, 316L stainless steel is widely used in medical implants due to its ability to resist body fluids and maintain structural integrity over time. The precision offered by the MIM process allows for the creation of intricate designs, such as dental brackets and surgical tools, with minimal material waste. These properties ensure that stainless steel components meet stringent medical standards while offering durability and reliability.
Automotive and Aerospace Components
The automotive and aerospace industries benefit significantly from stainless steels in metal injection molding process. Components such as fuel injectors, turbocharger parts, and aerospace brackets require high strength, corrosion resistance, and dimensional accuracy. Stainless steels, particularly grades like 17-4 PH, provide the mechanical performance needed to withstand extreme temperatures and pressures. The MIM process enables the production of lightweight yet robust components, reducing overall vehicle weight and improving fuel efficiency. This combination of performance and precision makes stainless steels indispensable in these demanding sectors.
Consumer Electronics and Other Industries
Stainless steels are also widely used in consumer electronics and other industries. Their ability to produce small, complex parts with high precision makes them suitable for devices like smartphones, wearables, and laptops. For instance, stainless steel housings and connectors ensure durability and aesthetic appeal in electronic gadgets. Beyond electronics, industries such as defense, energy, and food processing rely on stainless steels for components like valves, fasteners, and cutting tools. The versatility of stainless steels in the MIM process allows manufacturers to meet diverse industry requirements efficiently.
Comparing Stainless Steels to Other Materials in MIM
Stainless Steels vs. Carbon Steels
Stainless steels outperform carbon steels in the metal injection molding (MIM) process due to their superior corrosion resistance and mechanical properties. While carbon steels are cost-effective and offer good strength, they lack the ability to resist oxidation and harsh environments. Stainless steels, particularly duplex grades, combine the benefits of austenitic and ferritic steels, offering higher strength and better durability at a competitive price.
- Key Advantages of Stainless Steels Over Carbon Steels:
- Enhanced corrosion resistance, ensuring longer component life.
- Superior mechanical properties, including tensile strength and elongation.
- Better performance in high-temperature and high-stress applications.
These attributes make stainless steels a more reliable choice for industries requiring precision and longevity.
Stainless Steels vs. Titanium Alloys
Titanium alloys are known for their exceptional strength-to-weight ratio and biocompatibility, making them ideal for aerospace and medical applications. However, stainless steels provide a more cost-effective solution in the MIM process without compromising on performance. While titanium alloys excel in weight-sensitive applications, stainless steels offer:
- Comparable mechanical properties at a fraction of the cost.
- Higher density, which is advantageous in applications requiring structural stability.
- Easier processing and availability, reducing production complexities.
For many industries, stainless steels strike a balance between performance and affordability.
Cost and Performance Considerations
Stainless steels in MIM demonstrate a favorable balance of cost and performance compared to other materials. The table below highlights key metrics:
| Material Type | Density (g/cm³) | Tensile Strength | Elongation |
|---|---|---|---|
| Wrought Stainless Steel | ~8 | Higher | Higher |
| PM Stainless Steel | ~7.2 | Lower | Lower |
| MIM Stainless Steel | ~7.6 | Closer to wrought | Closer to wrought |
Stainless steels in the MIM process outperform conventional powder metallurgy steels in mechanical properties and cost-effectiveness. Their versatility and efficiency make them indispensable for producing complex components across industries.
Stainless steels in metal injection molding process provide unmatched benefits. Their unique combination of corrosion resistance, strength, and adaptability ensures high-performance components. Industries rely on these materials for their durability and cost-effectiveness. Their ability to meet complex design requirements makes them indispensable for diverse applications, from medical devices to aerospace components.
FAQ
What makes stainless steels a preferred material in the MIM process?
Stainless steels offer superior corrosion resistance, strength, and design flexibility. These properties make them ideal for producing complex, high-performance components across diverse industries.
How does MIM stainless steel compare to wrought stainless steel?
MIM stainless steel achieves mechanical properties close to wrought grades. It offers comparable strength, elongation, and corrosion resistance, making it a cost-effective alternative for intricate designs.
Can stainless steels in MIM be used for medical applications?
Yes, stainless steels like 316L are biocompatible and corrosion-resistant. They are widely used in medical implants, surgical instruments, and orthodontic devices due to their reliability and safety.
