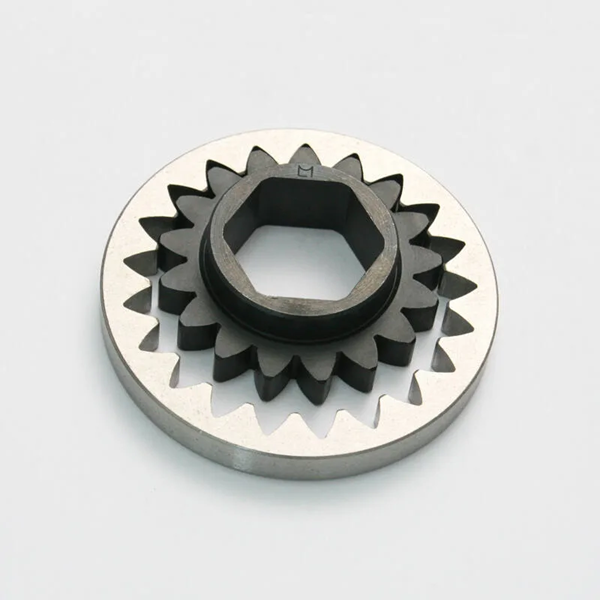

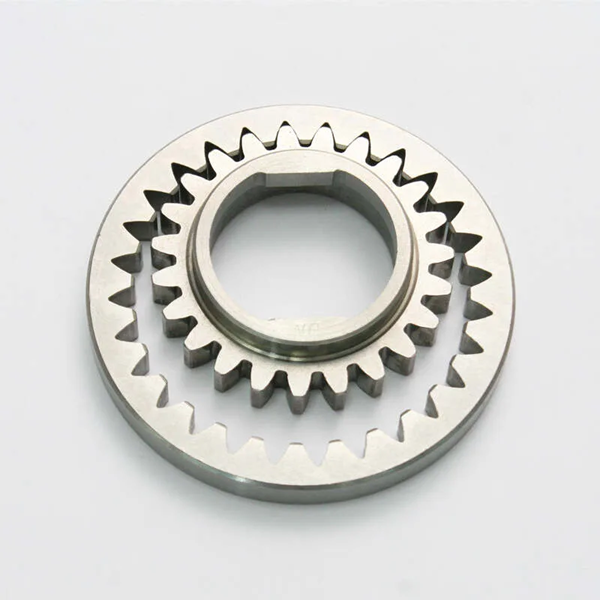

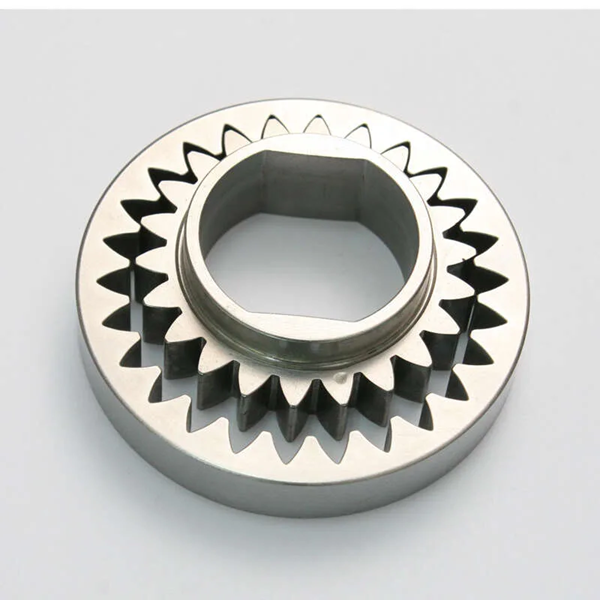

High-Precision Powder Metallurgy Oil Pump Gears for OEM Engines

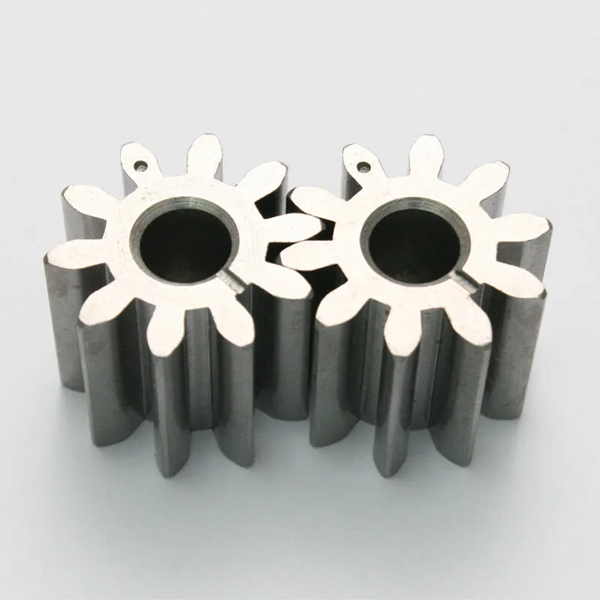

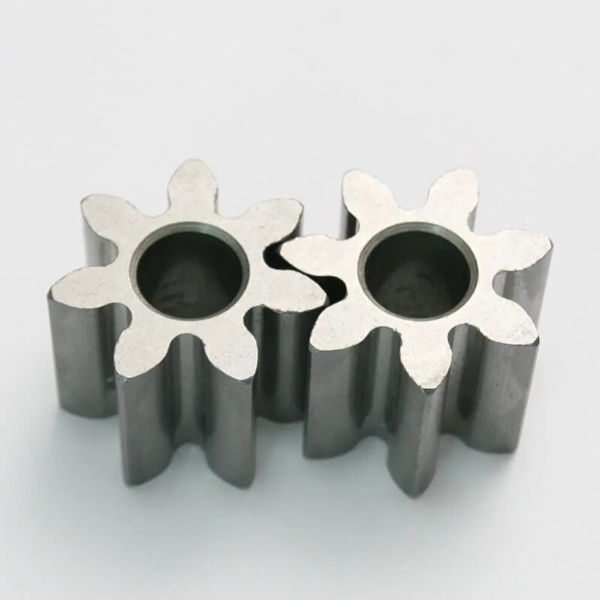

In internal combustion engines and high-pressure transmission systems, oil pump gears are critical power-transmission and fluid-metering components. Unlike gerotor internal rotors, external oil pump gears (spur or helical configurations) engage directly to pull engine oil from the sump and deliver high-volume, pressurized lubrication to crankshaft bearings, camshafts, and turbochargers.
To withstand extreme RPM cycles, thermal shock, and constant hydraulic shear, JHMIM manufactures high-density, custom-engineered sintered oil pump gears utilizing advanced powder metallurgy (PM) alloy formulations and strict IATF 16949:2016 quality controls.
Advanced Manufacturing Workflow for Sintered Engine Gears
JHMIM utilizes automated multi-stage powder metallurgy to produce net-shape gears with minimal material waste and excellent batch-to-batch repeatability.
- Powder Atomization & Alloy Blending: High-purity iron powders are homogenously blended with copper, nickel, graphite, and solid lubricants to enhance compressibility and flowability.
- Precision Compaction: Advanced CNC hydraulic presses compact the powder mix under high pressures (400 to 800 MPa) into rigid precision dies, creating robust green gear shapes.
- Controlled-Atmosphere Sintering: Green compacts enter continuous mesh-belt furnaces at temperatures up to 1,120°C (2,050°F). Solid-state diffusion bonds the metallic grains into a dense structural matrix.
- Secondary Finishing & Densification Operations:
- Sizing (Repressing): Restores precise tooth profiles and corrects radial dimensions to achieve IT5–IT8 gear tolerances.
- Copper Infiltration: Fills residual inter-granular micro-pores with liquid molten copper, dramatically boosting tensile strength, thermal conductivity, and fatigue limit.
- Heat Treatment & Deburring: Case hardening and tempering achieve surface hardness above 30–45 HRC; microscopic automated deburring ensures root-surface smoothness down to Ra 0.6 µm.
Manufacturing Capabilities & Dimensional Specifications
| Engineering Attribute | JHMIM Manufacturing Capability Range |
|---|---|
| Outer Diameter Range | 5 mm to 300 mm |
| Gear Width / Length | 5 mm to 150 mm |
| Component Weight | 5 g to 5,000 g |
| Minimum Wall Thickness | 1.5 mm |
| Surface Roughness | Ra 0.6 µm to Ra 1.6 µm (Post-ground/sized) |
| Dimensional Precision Grade | ISO IT6 – IT8 (AGMA Quality Grade 8-10) |
| As-Sintered / Hardened Hardness | 50–90 HRB (Sintered) / 30–50 HRC (Heat Treated) |
| Material Options | MPIF FC-0208, FN-0208, FL-4205, FD-0205, Stainless Steel, Bronze |
Material Performance & Mechanical Properties Comparison
Material density directly dictates fatigue life and tooth bending strength under intense mechanical loads. JHMIM offers customized MPIF-standard alloys tailored for light-duty passenger cars up to heavy-duty industrial diesel engines.

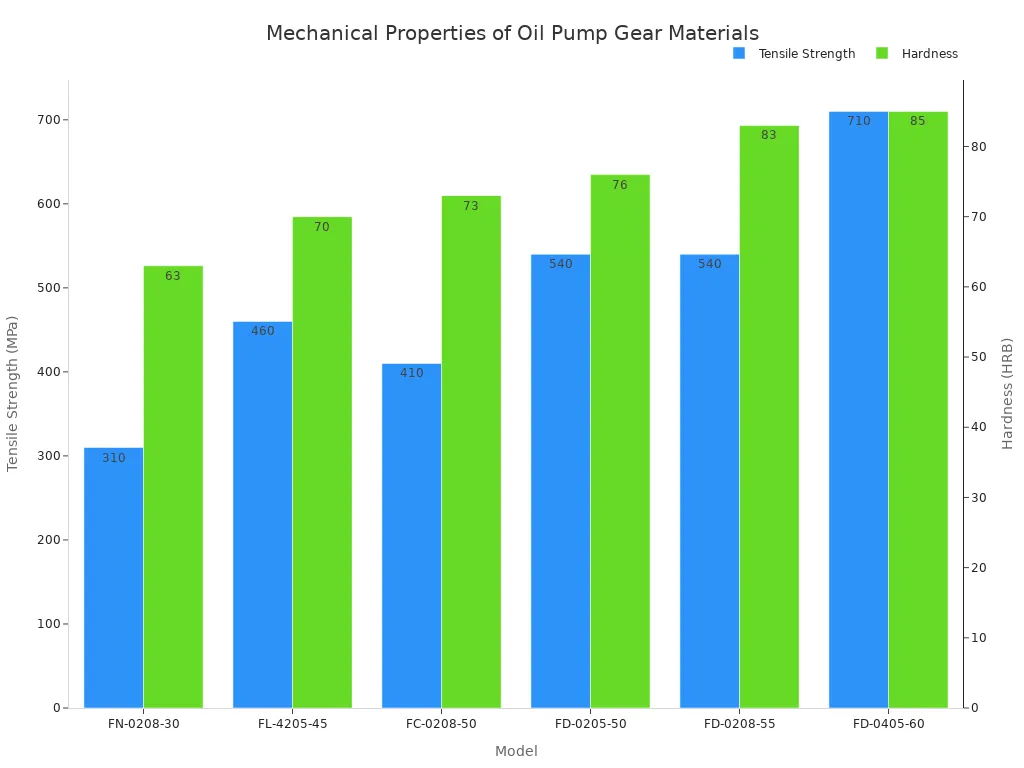

| MPIF Material Standard | Sintered Density | Tensile Strength (Ultimate) | Typical Hardness |
|---|---|---|---|
| FN-0208-30 (Nickel-Steel) | 6.70 g/cm³ | 310 MPa | 63 HRB |
| FC-0208-50 (Copper-Steel) | 6.70 g/cm³ | 410 MPa | 73 HRB |
| FD-0205-50 (Diffusion-Alloyed) | 6.95 g/cm³ | 540 MPa | 76 HRB |
| FL-4205-45 (Prealloyed Steel) | 7.10 g/cm³ | 460 MPa | 70 HRB |
| FD-0405-60 (High-Strength Alloy) | 7.05 g/cm³ | 710 MPa | 85 HRB |
Direct Engineering Advantages for Engine Longevity
1. High Tooth Root Fatigue Resistance
By engineering high-density gear roots through net-shape pressing and secondary sizing, JHMIM gears eliminate root stress concentration, preventing tooth shear even under sudden hydraulic pressure spikes or high RPM overspeed events.
2. Reduced NVH (Noise, Vibration, and Harshness)
Tight tooth involute geometry control (tolerances within ±0.01 mm) ensures smooth meshing with minimal gear backlash. This dramatically lowers mechanical noise and torque pulsation across the entire engine operating temperature spectrum.
3. Consistent Volumetric Efficiency & Lubrication Pressure
Precision side-face flat grinding guarantees tight axial end-clearances within the pump housing, preventing high-temperature internal oil bypass and maintaining rapid pressure buildup during cold startups.
Partner with JHMIM for OEM Sintered Oil Pump Gears
JHMIM provides end-to-end engineering support for custom automotive and industrial oil pump gears. Operating under ISO 9001:2015 and IATF 16949:2016 quality management systems, we offer tooling DFM, high-density pressing, custom alloy sintering, copper infiltration, and 100% gear mesh inspection.
👉 Send Your 2D/3D Gear Drawings (STEP/CAD) to JHMIM Engineers for a Quick Quote →
JHMIM oil pump gears feature precision engineering, advanced materials, and robust design. They undergo rigorous testing under ISO/IATF certified systems, ensuring unmatched durability and performance.
They deliver consistent, optimal oil pressure. This reduces friction and wear on critical engine components. It prevents premature degradation and catastrophic failure, extending engine life.
JHMIM oil pump gears adhere to ISO 9001:2015 and IATF 16949:2016 certified quality management systems. Each gear undergoes comprehensive testing for precision and strength.
