F15 MIM (Kovar) stands apart with a low coefficient of thermal expansion at 4.50 (10^-6/°C) from 20°C to 400°C, matching that of borosilicate glass and enabling smooth glass-to-metal bonding. This nickel-cobalt ferrous alloy contains 29% nickel and 17% cobalt. It maintains dimensional stability across extreme temperature variations without structural weakening or deformation. Kovar metal injection molding offers engineers a solution to overcome severe machinability challenges while producing complex, near-net-shape components for demanding applications. Aerospace, defense, and optoelectronics rely on Kovar glass to metal sealing applications that require hermetic integrity and thermal compatibility that few materials can deliver. We cover ASTM F15 composition standards, MIM processing parameters, cost comparisons with traditional machining, and critical design considerations for producing high-reliability Kovar components.

ASTM F15 (Kovar) Material Composition and Core Properties

ASTM F15 Chemical Composition Standards & Tight Limits

ASTM F15 specification governs Kovar alloy composition. It requires iron at 53%, nickel at 29%, and cobalt at 17% (all nominal values).

The standard mandates maximum impurity limits: carbon≤0.020, manganese ≤0.50%, silicon ≤0.20%, with copper, chromium, and molybdenum each capped at 0.20%. Aluminum, magnesium, zirconium, and titanium combined cannot exceed 0.20% total. These tight compositional controls are critical. Deviations in nickel and cobalt content move the thermal expansion curve away from borosilicate glass compatibility.

Manufacturers adjust iron, nickel, and cobalt percentages to meet coefficient of thermal expansion requirements specified in ASTM F15. Vacuum melting processes maintain compositional uniformity. Some specifications limit carbon to 0.02% maximum and manganese to 0.30% to boost efficiency.

Coefficient of Thermal Expansion (CTE) Matching with Borosilicate Glass

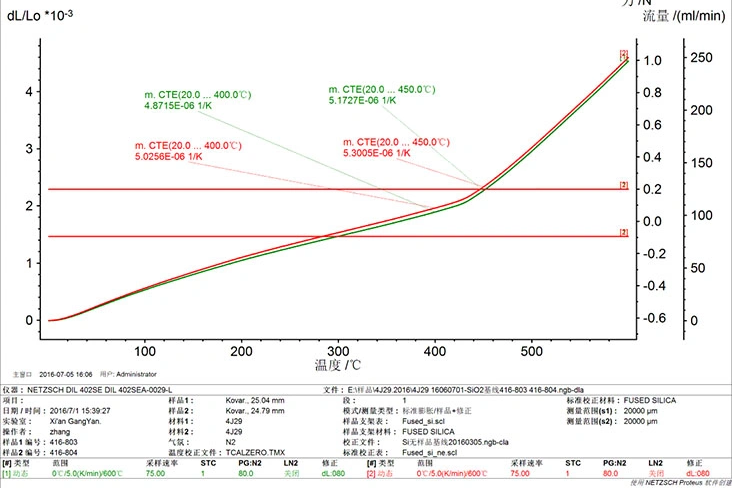

“Kovar exhibits a mean CTE of 4.60 × 10⁻⁶/K from 25°C to 200°C. It increases to 4.80–5.20 × 10⁻⁶/K at 400°C and 5.10–5.50 × 10⁻⁶/K at 450°C.”ASTM F15 specifies acceptable CTE ranges: 4.60 to 5.20 µm/m·°C at 400°C and 5.10 to 5.50 µm/m·°C at 450°C. This profile matches borosilicate glass (CTE: 4.5-5.5 × 10^-6/°C) and reduces thermal stress during sealing operations. Above the Curie temperature of 435°C, expansion increases sharply to 13 × 10^-6/°C as the alloy transitions from ferromagnetic to paramagnetic behavior.

Mechanical & Magnetic Properties Below Curie Point

Annealed Kovar demonstrates a tensile strength of 517 MPa, yield strength of 345 MPa, and 30% elongation. The modulus of elasticity reaches 138 GPa with a Poisson’s ratio of 0.317. Magnetic permeability varies with heat treatment. Annealing at 1099°C for 20 minutes produces permeability values of 3500 at 1000 Gauss and 10,000 at 5000 Gauss. Lower hardness relates to higher permeability and reduced hysteresis loss.

MIM Processing Requirements for F15 Kovar Parts

Feedstock Formulation & Powder Characteristics

Gas atomization of pre-alloyed Kovar melts produces spherical powders with particle size distributions of 10-45 μm (D₅₀ = 20-25 μm). High-pressure inert gas (Ar or N₂ at 3-5 MPa) gives rapid solidification and uniform composition. MIM feedstocks employ multi-component binder systems: backbone polymer (cellulose acetate butyrate at 60-70 wt% of binder), plasticizer (HDPE at 20-30 wt%), and processing aids (microcrystalline wax, stearic acid at 5-10 wt%). Powder loading optimized to 55-64 vol% balances feedstock viscosity (100-500 Pa·s at 150-170°C) with final sintered density.

Critical Debinding & Decarburization (Solvent & Thermal Debinding)

Solvent debinding  in water or specialized organic solvents (such as heptane) at 40–60°C removes 60–80 wt% of binder. Thermal debinding follows with controlled atmosphere (H₂ or Ar-5%H₂) at slow heating rates (1-5°C/min) to 600°C and avoids defect formation. Decarburization occurs in moist hydrogen atmosphere at 1000-1100°C for 7-15 minutes, with temperature selected above glass sealing temperature.

Vacuum & Atmosphere-Controlled Sintering Parameters

Sintering occurs at 1200-1350°C for 1-4 hours in high-purity hydrogen or vacuum (pressure <10⁻⁴ mbar). This is a big deal as it means that densities reach 98% of theoretical density.

Kovar densification relies on solid-state diffusion mechanisms, requiring precise thermal control to reach maximum grain boundary bonding without grain coarsening.

Heat Treatment: Stress Relief, Annealing & Pre-Oxidation for Glass Bonding

Stress relief annealing at 850°C for 30 minutes relieves work hardening. Pre-oxidation heat treatment at 850–900°C in an electric air furnace produces a dark gray oxide film. Cooling at 10°C/min forms intergranular oxide layers (Fe₃O₄ and Fe-Co spinels) that are the foundation of glass wetting. Modern manufacturing facilities utilize high-tonnage sintering and pressing equipment to deliver high-density, zero-defect complex metal components globally.

Kovar MIM vs. Traditional CNC Machining: Cost & Feasibility

Overcoming Kovar’s Severe Machinability & Tool Wear Limitations

Traditional CNC machining of Kovar presents formidable challenges. The iron-nickel-cobalt composition causes carbide tools to wear at accelerated rates and last only 30-40% of their normal lifespan. Work hardening occurs faster during cutting, with each pass making subsequent operations harder. Then machining costs reach 1.5-2.5 times those of comparable stainless steel components. Operators must employ low cutting speeds (20-30 m/min) with copious coolant to manage heat buildup. Kovar metal injection molding eliminates these obstacles by forming complex geometries before sintering and reduces or eliminates post-processing machining.

Material Savings: Near-Net Shape vs. High Scrap Raw Kovar Chips

Material utilization separates MIM from subtractive machining. Traditional CNC operations generate 30-40% material waste as chips and scrap. MIM processes create parts with just 5% waste. For complex Kovar components that require multiple setups and tool changes, material losses escalate further. Near-net-shape manufacturing minimizes raw material investment costs and reduces waste disposal expenses.

Break-Even Production Volume Analysis for Kovar Components

The economic crossover between MIM and CNC machining occurs between 3,000 and 15,000 parts. MIM becomes cost-effective at volumes exceeding 10,000 units, with per-unit costs decreasing by a lot as production scales.

Kovar Glass to Metal Sealing Applications

Hermetic Sealing in Optoelectronics & Microelectronic Packages

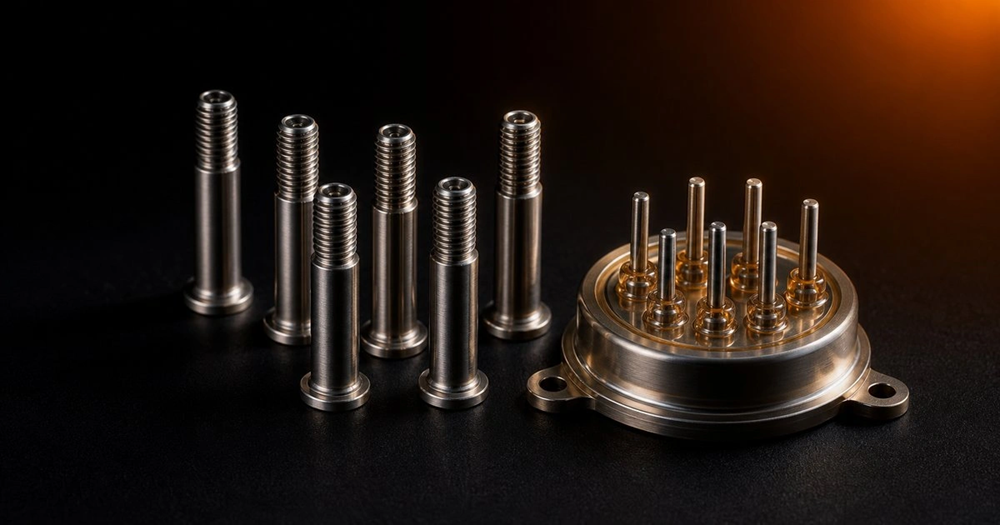

Glass-to-metal sealing in optoelectronic packages relies on controlled oxidation at 850-950°C. “This forms Fe3O4 and spinel surface layers that chemically bond with borosilicate glass. The sealing process occurs at 950-1050°C with 10-30 minute dwell times and produces hermetic seals with helium leak rates below 1×10⁻⁹ Pa·m³/s. Multi-pin feedthroughs incorporate Kovar pins (0.3-1.5 mm diameter) with gold-plated surfaces. Pin spacing ≥2.5× pin diameter prevents thermal stress concentration during cycling.

Borosilicate Glass & Alumina Ceramic Compatibility

Corning 7052 glass and SCHOTT 8250/8245 glasses seal to Kovar. SCHOTT 8447, 8448 and 8449 enable graded seals with DURAN borosilicate tubing. Alumina ceramic bonding through active brazing achieves leakage rates <8.0×10⁻⁹ Pa m³/s with insulation resistance >2.6×10¹⁰ Ω. The molybdenum-manganese metallization layer improves hermeticity. It enhances solder wetting to ceramic surfaces.

Aerospace, Defense, and High-Reliability Interconnects

Hermetic connectors meet MIL-STD-883 and MIL-PRF-38534 standards for defense electronics. RF hermetic packages use gold-plated Kovar bodies with glass-to-metal feedthroughs for microwave modules.

Medical Device Feedthroughs and Implantation Housings

Implantable device packages employ titanium or titanium alloy flanges. Platinum or platinum-iridium conductor pins seal through alumina ceramic insulators. Pacemakers, cochlear implants and neurostimulators require hermetic sealing. This protects electronics from bodily fluids.

Design Considerations & Quality Control for F15 Kovar MIM

Critical Geometry, Shrinkage Factor, and Tolerance Planning

Kovar MIM parts shrink about 20% during sintering. Material grade and temperature profiles determine specific rates. Standard as-sintered tolerances reach ±0.3% to ±0.5% of nominal dimensions. This translates to ±0.06mm for features under 3mm and ±0.15mm for 15-30mm dimensions. Uniform wall thickness (1-6mm range) controls shrinkage variability and prevents warpage. Flat sealing surfaces just need support orientation review during sintering. Unsupported features sag under gravity. Asymmetric sections and thin walls just need careful gate strategy and sintering support planning to avoid distortion.

Secondary Operations: Precision Machining, Plating & Welding

CNC machining achieves tolerances to ±0.005mm on critical Kovar MIM surfaces. Electroplated nickel (50-150 microinches) and gold (50-100 microinches) provide corrosion protection and solderability. TIG welding, laser beam welding, and resistance seam welding join Kovar assemblies. Laser sealing produces narrow heat-affected zones for hermetic packages.

Surface Finish, Hermetic Leak Testing (Helium Leak Rate)

Aerospace and medical applications just need surface roughness Ra ≤0.2-0.8 µm. Helium leak detection verifies hermetic integrity. Acceptable rates stay below 1×10⁻⁹ atm·cc/s for fine leaks. Bombing at four atmospheres minimum for 1-4 hours precedes testing, with maximum 30-minute dwell time between pressurization and detection.

Conclusion

F15 Kovar MIM delivers precision glass-to-metal sealing capabilities that traditional machining cannot achieve economically. The alloy’s thermal expansion matches borosilicate glass, and MIM’s near-net-shape manufacturing eliminates severe machinability challenges while reducing material waste from 40% to just 5%. Engineers working on hermetic packages for aerospace, defense and medical devices get dimensional control to ±0.3% tolerances with helium leak rates below 1×10⁻⁹ Pa·m³/s. Kovar MIM has become indispensable for high-reliability applications that demand thermal compatibility and hermetic integrity through extreme temperature cycling.
